230V 60A STS 20 Digital Token Recharge Prepaid Single Phase Electricity Meter for Solar System

Product Categories
Hunan Stron Smart Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

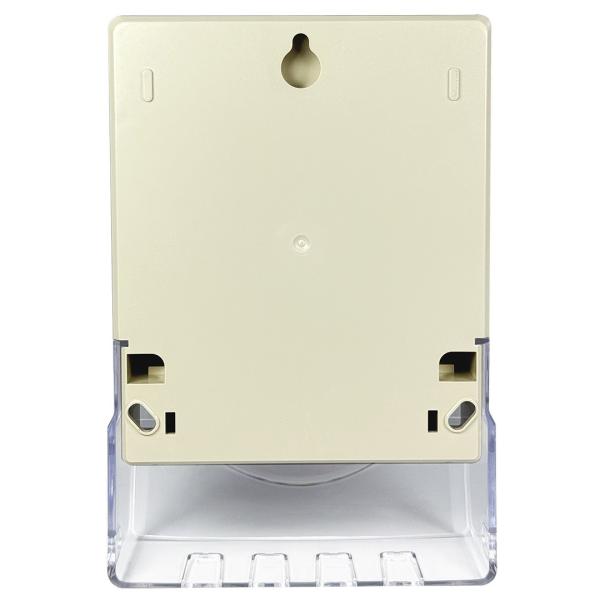

230V 60A STS 20 Digital Token Recharge Prepaid Single Phase Electricity Meter for Solar System

  • 1
  • 2

Brand Name : stron

Model Number : STE18/STE38

Certification : STS

Place of Origin : China

MOQ : 10

Price : negotiated

Payment Terms : T/T

Supply Ability : 80000000 units per year

Delivery Time : 5-15 work day

Packaging Details : Carton size: 67.5cm*40cm*14.5cm. Quantity：20 units per carton. Weight: 10.56kg

Product name : Prepaid Energy Meter

Rated Voltage : 220-240V/3*220V

Standard : STS Standard

Display : LCD

Frequency : 50-60HZ

Warranty : 2 years

OEM : Support

Certificate : ISO9001; ISO14001; STS Standard

Communication : LORA-RF supported

Vending Software : Supported

Recharge Token Length : 20 digits

Protection Class : IP54

Battery Life : 8 years

Current Range : (5A/80A)/(10A/100A)

Starting Current : (20mA)/(30mA)

Energy Constant : (1000imp/kWh)/(400imp/kWh)

Measurement Accuracy : Class 1.0

Mobile Payment Support : M-PESA, Alipay, MTN, Airtel, etc.

Overdraft Collection : daily/monthly optional

Data Storage Duration : 10 years

Anti-Tampering : Both with magnetic field/cover-opening detection; STE18-B cuts relay, STE38-G shuts valve when triggered

Recharge Method : (1. Stronpay Software; 2. 3rd-party/mobile payment)plus 3. AMI system remote recharge)

Contact Now

This STS prepaid single phase electricity meter is complait for STS standard, designed for residential and small commercial users. This meter supports prepaid recharge management.Users can manage their electricity consumption through TOKEN-based recharging, preventing power disconnection due to insufficient balance. It is an ideal solution for smart metering and energy management.
230V 60A STS 20 Digital Token Recharge Prepaid Single Phase Electricity Meter for Solar System230V 60A STS 20 Digital Token Recharge Prepaid Single Phase Electricity Meter for Solar System230V 60A STS 20 Digital Token Recharge Prepaid Single Phase Electricity Meter for Solar System
Main functions:

1. Meter recharge by inputting token

2. Active energy measurement
3. Build-in relay control
4. Low credit alarm( red light alarm)
5. Query data by short codes
Please note:
1.This type no battery inside
2. No buzzer alarm
3. There is LLNN wiring way available
Parameters
Nominal Voltage 230V
Working Voltage Range 30%~120%Un
Nominal Frequency 50-60Hz
Basic Current (Ib) 5A
Maximum Current (Imax) 60A
Active Energy Constant
 1000imp/kWh
Measurement Accuracy <2W <8VA
Power Consumption in Voltage Circuit <1VA
Power Consumption in Current Circuit -25℃-70℃
Operation Temperature Range -40℃-85℃
